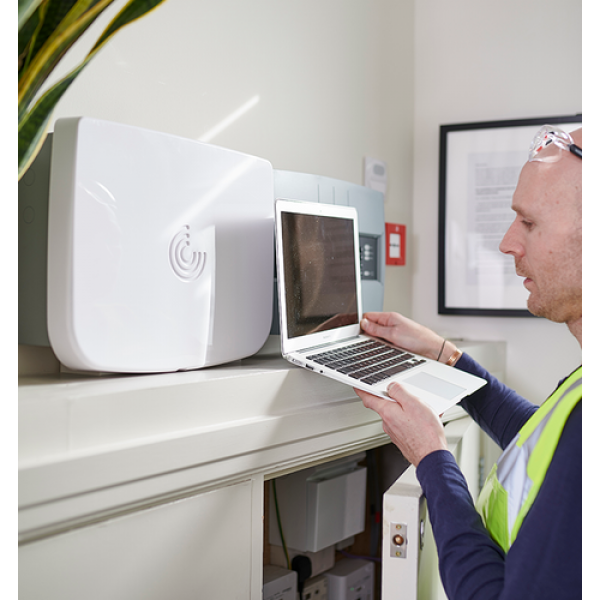

The Controller is the heart of the nurse call system, providing power to the Extra Low Voltage devices on the secure 2 wire Intercall Bus network, and an ethernet link to the LAN for system programming and automatic call logging.
Security
Password protected access for secure datalogging and system programming
Programming
Intuitive system programming interface via a web embedded server accessed using an internet browser
Datalogging
All events are recorded with a date and time stamp with the ability to generate reports
Technical Specifications:
Dimensions: 420 x 320 x 230mm
Weight: 3.9kg
Output: 13.8VDC
LAN: IEEE802.3
Installation: 90-230VAC
